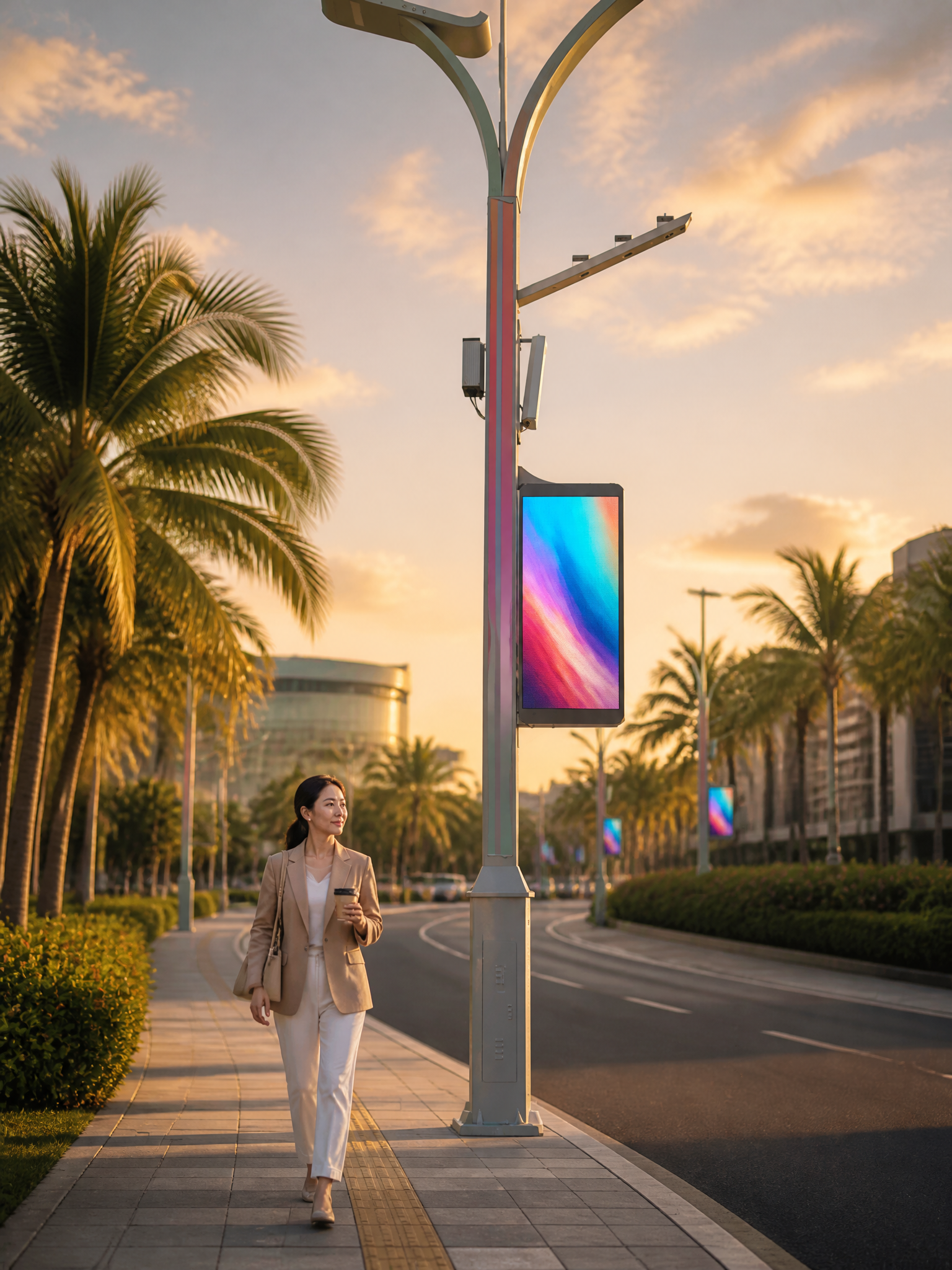

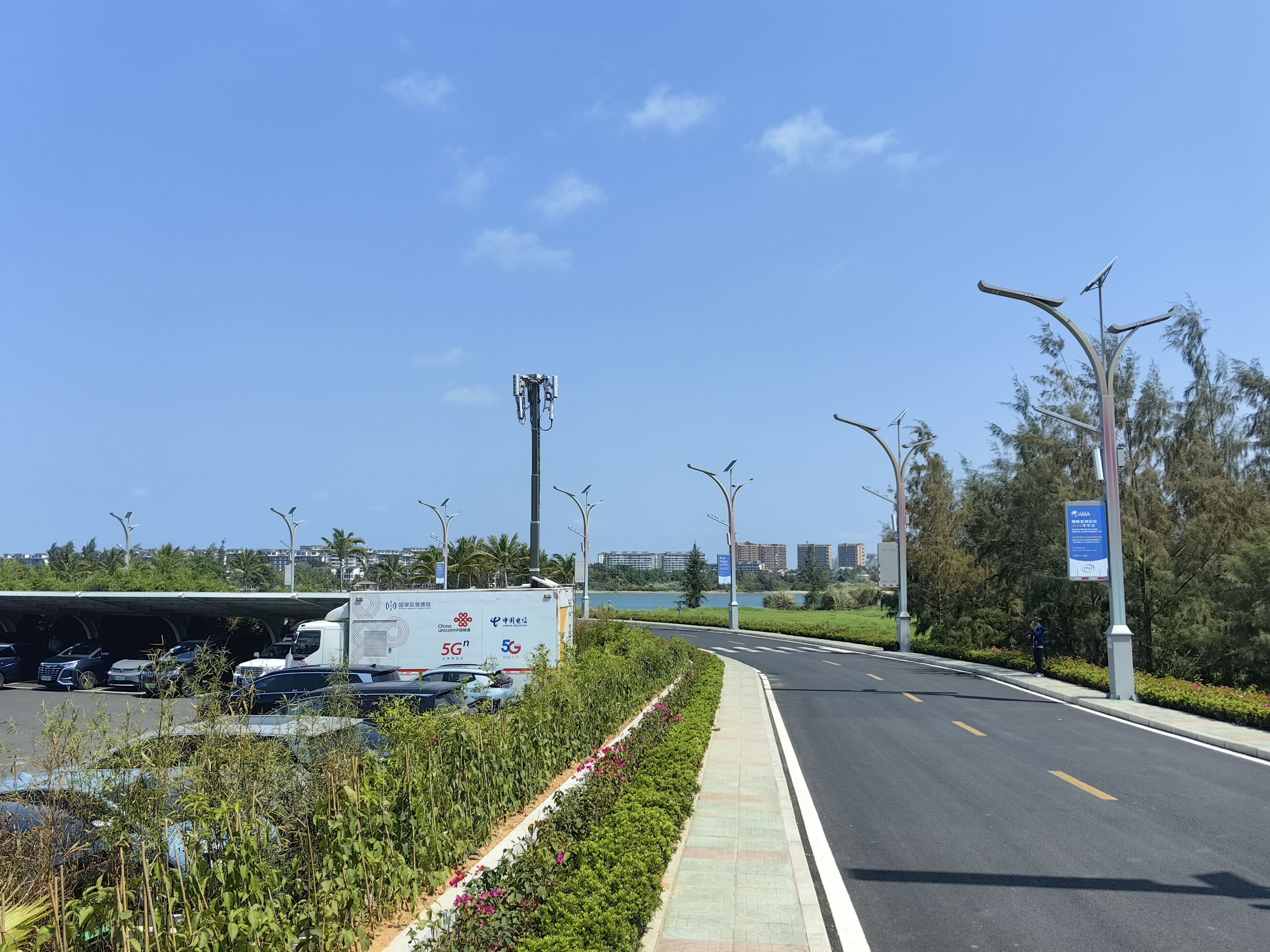

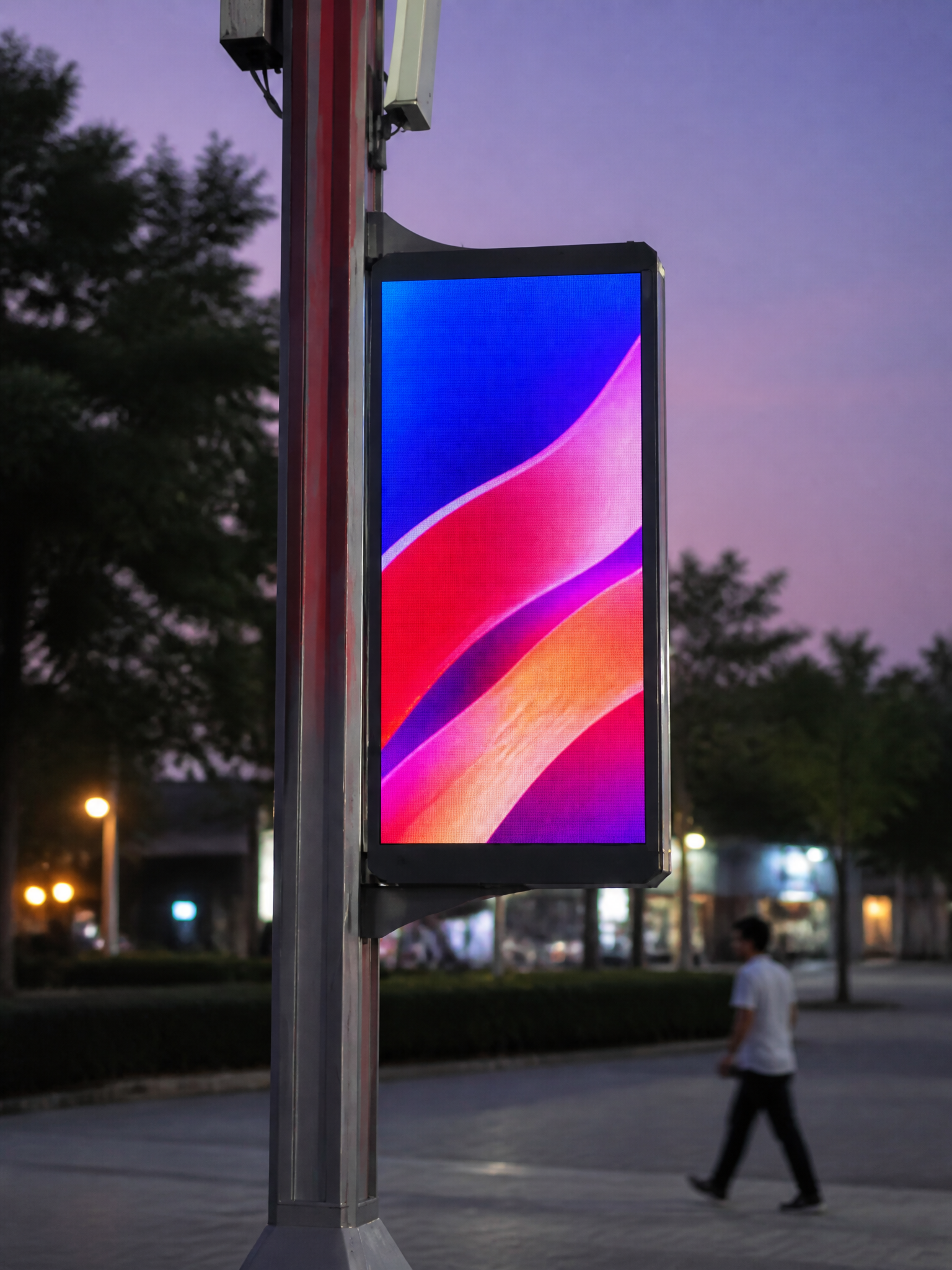

TOA-L Series Smart LED Display Technical Specification | ||||
Operating Environment | OUTDOOR | |||
Model | TOA-L2.94 | TOA-L3.33 | TOA-L3.84 | TOA-L4 |
Pixel Pitch | 2.94mm | 3.33mm | 3.84mm | 4mm |
LED Configuration | SMD1415 | SMD1921 | SMD1921 | SMD1921 |
Pixel Density | 115620 dot/ ㎡ | 90180dot/ ㎡ | 67816dot/ ㎡ | 62500dot/ ㎡ |
Module Size | 200x200mm | 200x200mm | 200x200mm | 256x128mm |
Module Resolution | 68x68dot | 60x60dot | 52x52dot | 64x32dot |
Display Area | 40inch | 60inch | 60inch | 60inch |
Cabinet Size | 400x800x90mm | 600x1200x90mm | 600x1200x90mm | 768x1536x90mm |
Cabinet Resolution | 136x272dot | 180x360dot | 156x312dot | 192x384dot |
Cabinet Weight | 25kg | 35kg | 35kg | 45kg |
IP Rating | IP65 | IP65 | IP65 | IP65 |
Scanning Mode | 16s | 8s | 8s | 8s |
Brightness | 6500CD/ ㎡ | 6000CD/ ㎡ | 6000CD/ ㎡ | N5000CD/ ㎡ |
Viewing Angle | 120° | 120° | 120° | 120° |
View Distance | >2.5m | >3m | >3m | >4m |
Gray Scale | Mbit | Mbit | Mbit | Mbit |
Display Scale | 16.7M | 16.7M | 16.7M | 16.7M |
Max.Power Consumption | 600W | 800W | 800W | 1200W |
Ave.Power Consumption | 200W | 230W | 230W | 400W |
Refresh Frequency | >960HZ | >960HZ | >960HZ | >960HZ |
Brightness Adjustment | 0-100 levels adjustable | |||
Control Mode | Asynchronous Control (3G/4G/WIFI) | |||
Support Input | Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI | |||
Input Power | AC100/240V50/60HZ | |||
Operating Temperature | -20°C~+50°C | |||
Operating Humidity | 10-90% RH | |||
Operating Life | 100,000hours |
