Main functions:

1. Simple ,super thin and light weight design ,easy to install and transport

2.Fanless design, zero noise, low power consumption, automatic heat dissipation

3.Small-pitch series obtain high contrast and high grey scale, It can display HD and ultra fine details

4.Seamless assembly and excellent flatness to show you the high quality images

5.Support for one-by-one pixel revise to assure the uniformity of brightness and color

6.RGB meticulous grey level adjustment to make a abundant and exquisite colors and clear/natural images

7.Accurate and flexible installation, Buckle design for the sides to install and disassemble effortlessly

8.Professional and standard air plug with high quality guarantee

9.Power supply and control card double backup, it can automatic cut into when other side in trouble

Specification

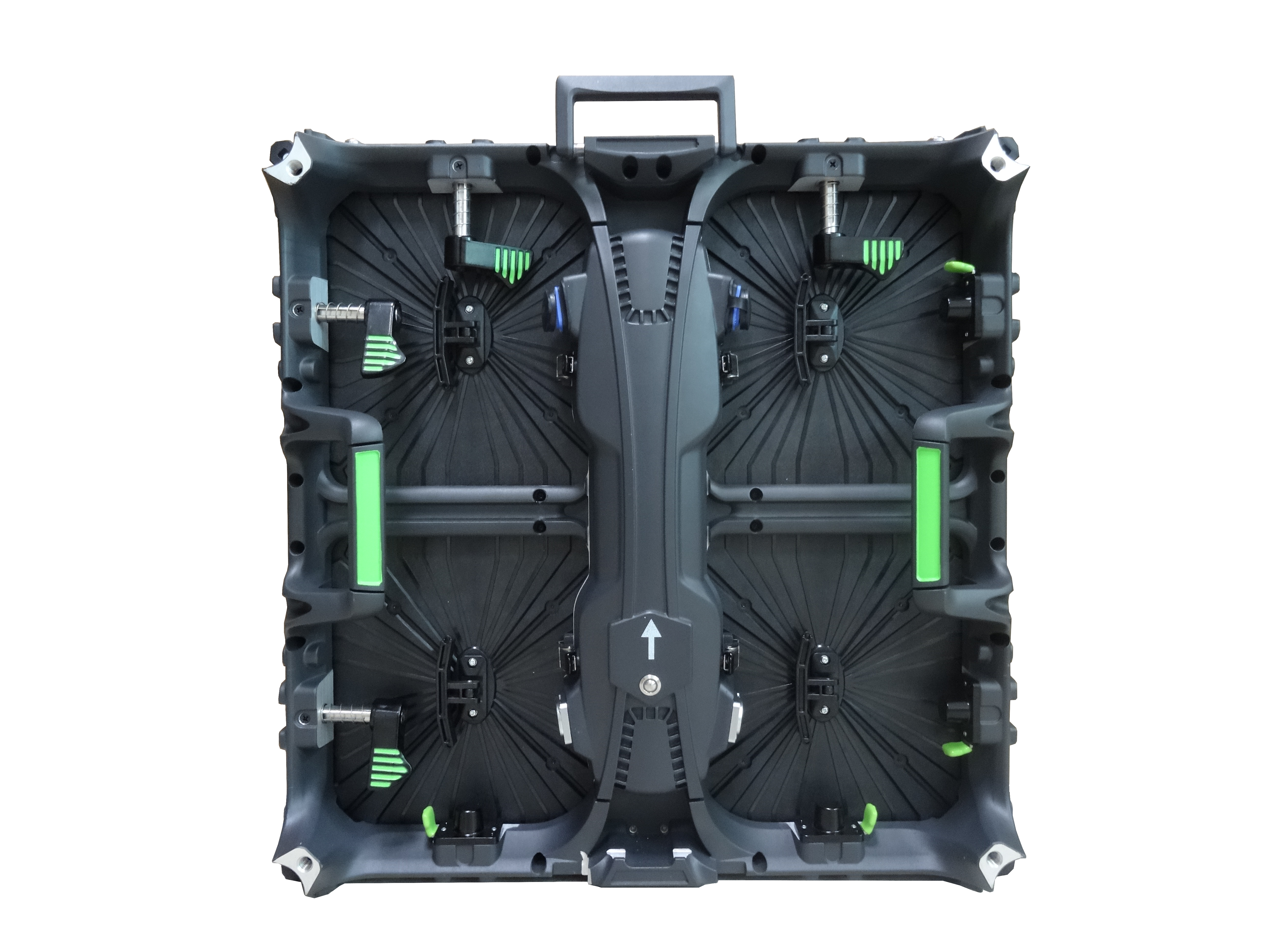

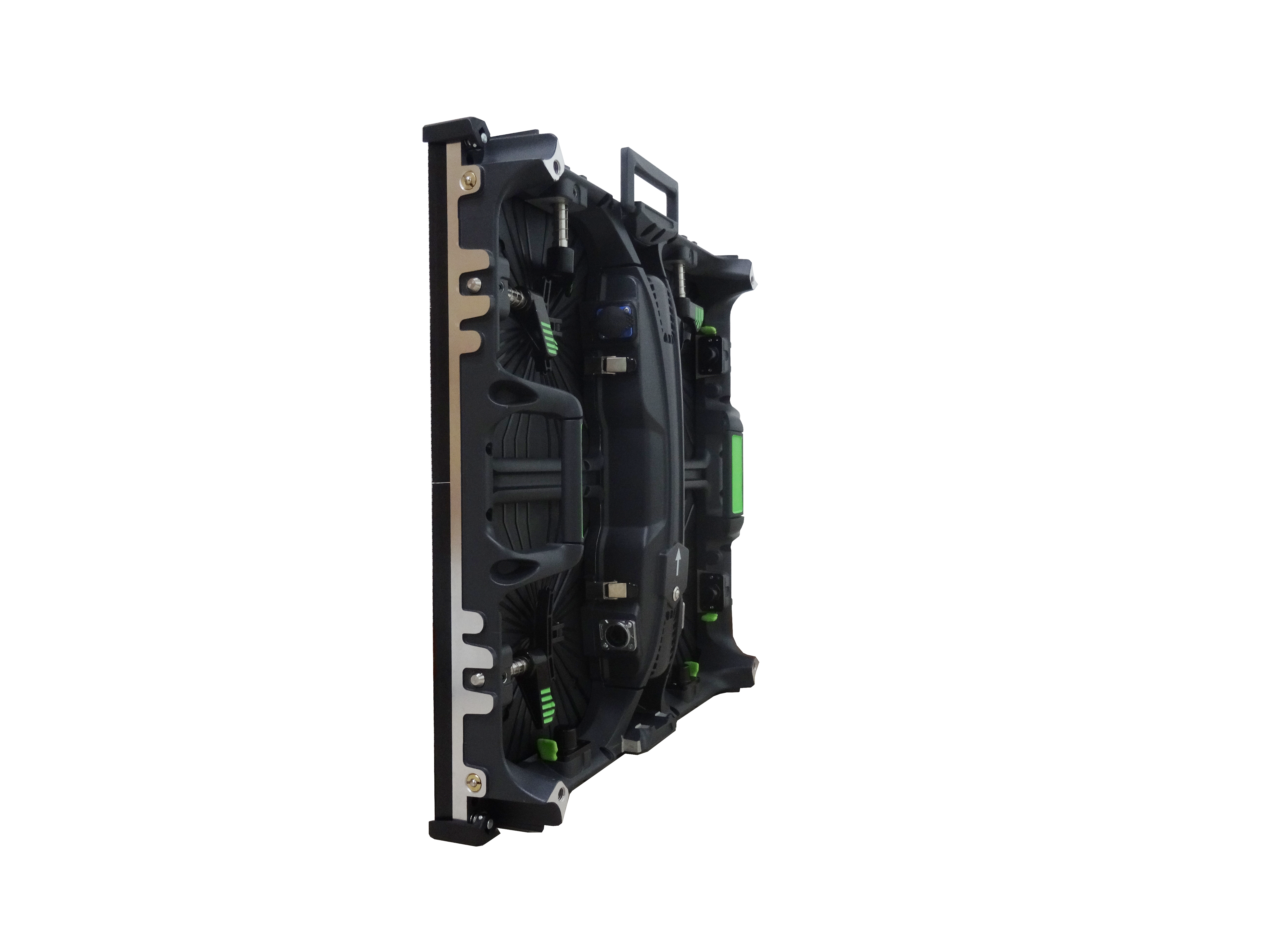

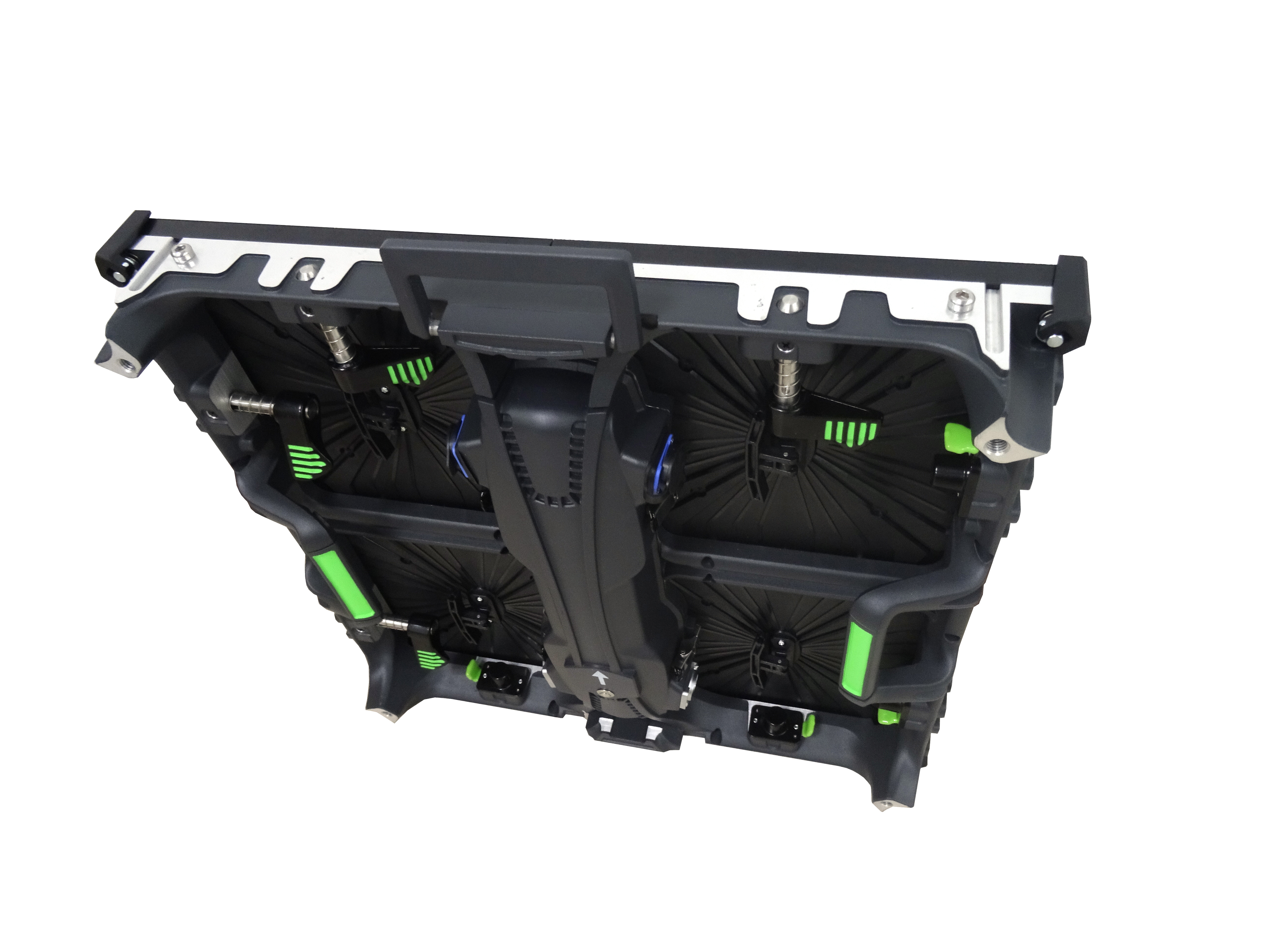

TOA500 Series Rental LED Display Technical Specification
 EnvironmentalINDOOR            INDOOR/OUTDOOR
ModelTOA-D2.6TOA-D2.9TOA-D3.9TOA-D4.8
 Pixel Pitch2.604 mm2.97 mm3.91 mm4.81 mm
 LED ConfigurationSMD1515SMD2121SMD2121/1921SMD2121/1921
 Pixel Density147470dot/m2113367dot/m265536dot/m243264dot/m2
 Module size250x250mm250x250mm250x250mm250x250mm
 Module Resolution96x96dot84x84dot64x64dot52x52dot
 Cabinet Size500x500mm500x500mm500x500mm500x500mm
 Cabinet Resolution192x192dot168x168dot128x128dot104x104dot
 Cabinet Weight10.5kg/pcs10.5kg/pcs10.5kg/pcs10.5kg/pcs
 IP Rating (front/back)IP43IP43IP65/43IP65/43
 Scanning Mode16S13S16S13S
 Brightness Intensity1000CD/  ㎡1000CD/ ㎡1800/3500CD/  ㎡1800/4000CD/ ㎡
 Viewing Angle120°120°120°120°
 View Distance>2.5m>3m>4m>5m
 Gray Scale14bit14bit14bit14bit
 Display Scale16.7M16.7M16.7M16.7M
 Max.Power Consumption800W/m2800W/m2800W/m2800W/m2
 Ave.Power Consumption265W/m2265W/m2265W/m2265W/m2
 Refresh Frequency>2880HZ>2880HZ>2880HZ>2880HZ
 Brightness Adjustment0-100levels adjustable
 Control ModeSynchronous display with control PC by DVI
 Support InputComposite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI
 Input Power                    AC110/AC220 50/60HZ
 Operating Temperature20°C~+60°C
 Operating Humidity10-90% RH
 Operating Life100,000hours
